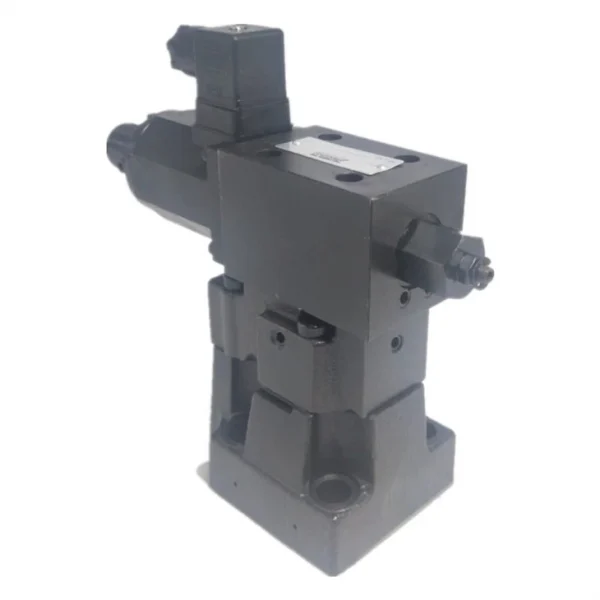

Product Overview The Yuken EBG Valve serves as the “pressure regulator” in modern automated hydraulic systems. Unlike standard relief valves that are manually set to a fixed pressure, the EBG allows the machine controller (PLC) to vary the pressure dynamically during a cycle—for example, offering low pressure during idling and high pressure during clamping.
Is it a “Servo Valve”? While often searched as a “servo valve” due to its electronic control and high precision, the EBG is technically a Proportional Valve.
-
Proportional (EBG): Controls pressure based on current. Used for force control.
-
Servo Valve (e.g., Yuken ES series): Typically controls flow/direction with extremely high frequency response. Used for position control.
-
Note: The EBG is often used alongside servo valves in high-end systems to manage the main system pressure efficiently.
Why Choose Yuken EBG?
-
Low Noise: The specially designed main valve spool minimizes chatter and fluid noise, improving the factory environment.
-
High Stability: Provides consistent pressure regulation even with fluctuating flow rates.
-
Fast Response: Good dynamic response to step changes in command signals.
-
Safety Options: Available with an integral manual safety valve (relief valve) to protect the system against pressure spikes if the electrical signal fails.
Compatible Power Amplifiers: To drive the EBG valve, a specific PWM power amplifier is required:
-
AME-D-10-*-20 (DC Input, Compact Type)
-
AME-D2-1010-11 (DC Input, Digital Type)
-
SK1022-–-11 (Euro Card Type)
| Specification |
Value / Description
|
| Product Type |
Proportional Electro-Hydraulic Relief Valve
|
| Series |
EBG (Pilot Operated)
|
| Valve Sizes |
03 (3/8″, NG10), 06 (3/4″, NG22), 10 (1-1/4″, NG32)
|
| Max. Operating Pressure |
24.5 MPa (3550 PSI)
|
| Pressure Adj. Range |
C: ~14 MPa (Low Pressure)H: ~24.5 MPa (High Pressure)
|
| Max. Flow Rate |
EBG-03: 100 L/minEBG-06: 200 L/minEBG-10: 400 L/min
|
| Min. Flow Rate |
3 L/min (All sizes)
|
| Coil Resistance | 10 Ω |
| Rated Current |
~730 mA to 820 mA (depending on model)
|
| Hysteresis | < 3% |
| Common Part Numbers |
Model Code Structure: EBG-[Size]-[Range]-[Safety]-[Design]EBG-03-C-51 (Size 03, 14 MPa max)EBG-03-H-51 (Size 03, 24.5 MPa max)EBG-06-C-51 (Size 06, 14 MPa max)EBG-06-H-51 (Size 06, 24.5 MPa max)EBG-10-H-51 (Size 10, High Pressure)EBG-03-C-T-51 (With Manual Safety Valve)(Note: Older design “50” or “T” may be cross-referenced to “51”).
|
