Name: Toyooki HPP-VC2V Piston Pump | Variable Displacement | Machine Tool Pump
SKU: Toyooki HPP-VC2V Piston Pump

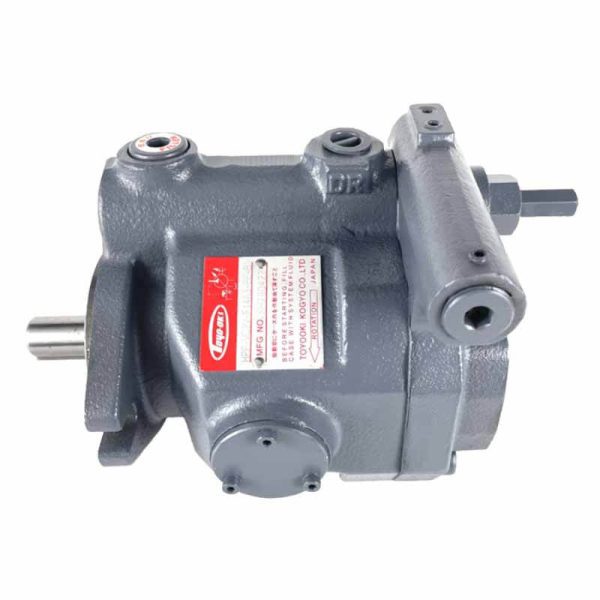

Toyooki HPP-VC2V Piston Pump

SKU: Toyooki HPP-VC2V Piston Pump

The Toyooki HPP-VC2V Series is a high-performance variable displacement axial piston pump manufactured by Toyooki Kogyo in Japan. Engineered specifically for precision machine tools, the HPP series stands out for its compact size, extremely low noise levels, and superior energy efficiency. It is the standard hydraulic power source for many Japanese CNC machining centers, lathes, and grinding machines.

Key Features:

Series: HPP (VC2V Type)
Displacement: 8 to 63 cm³/rev
Max. Pressure: Up to 210 bar (21 MPa)
Application: CNC Machine Tools, Hydraulic Power Units.

Product Overview The Toyooki HPP-VC2V Piston Pump utilizes a swashplate mechanism to provide variable flow output. What sets the Toyooki HPP series apart is its sharp cut-off characteristics and quick response time, which are critical for the precise clamping and positioning operations in machine tools. The pump is designed to minimize power loss during the pressure-holding (dwell) phase, contributing to lower oil temperatures and energy savings.

Why Choose Toyooki HPP Series?

Energy Saving: The pump automatically adjusts flow to zero when the system reaches the set pressure, consuming minimal power.
Low Noise & Vibration: Optimized internal structure and robust housing significantly reduce operational noise, improving the factory environment.
High Durability: Built with high-grade Japanese materials and precision tolerances, ensuring a long service life even under continuous cycling.
Compact Design: The integrated pressure and flow compensators make the unit compact and easy to install in limited spaces.

Common Applications:

Machine Tools: Mazak, Okuma, Mori Seiki, Brother (Clamping, Tool change systems).
Industrial Presses: Small precision presses.
Automation: Hydraulic robots and transfer lines.

Specification	Value / Description
Product Type	Variable Displacement Axial Piston Pump
Brand	Toyooki Kogyo (Japan)
Series	HPP (Type VC2V / VB2V)
Displacement Code	F8 (8.0 cc), F14 (14.0 cc), F20 (20.0 cc), F31 (31.0 cc), F50 (50.0 cc), F63 (63.0 cc)
Max. Operating Pressure	21 MPa (210 bar / 3000 psi)
Pressure Adj. Range	A3: 1.5–21 MPa (Standard)
Speed Range ( $n$ )	600 – 1800 rpm
Mounting	Flange Mounting (Japanese Standard / SAE)
Rotation	Clockwise (Standard)
Common Part Numbers	Model Code: HPP-VC2V-[Disp]-[Control]-[Voltage] HPP-VC2V-F8A3-A (8cc, 210 bar) HPP-VC2V-F14A3-A (14cc, 210 bar) HPP-VC2V-F20A3-A (20cc, 210 bar) HPP-VC2V-F31A3-A (31cc, 210 bar) HPP-VC2V-F50A3-A (50cc, 210 bar) HPP-VC2V-F63A3-A (63cc, 210 bar) (Note: Older models may be listed as HPP-VB2V. They are often functionally similar but check dimensions.)
