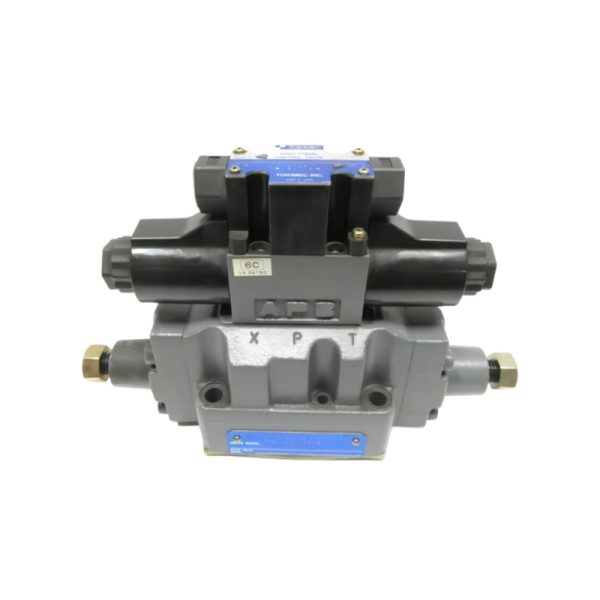

Tokimec DG5V-7-6C-1-E-P7-H-82-JA Hydraulic Directional Control Valve

The Tokimec DG5V-7-6C-1-E-P7-H-82-JA is a heavy-duty, two-stage solenoid-controlled, pilot-operated directional sliding spool valve engineered to govern high-volume fluid distribution in heavy manufacturing systems. Produced by Tokyo Keiki (formerly Tokimec), this size NG16 (CETOP 7) valve is designed to overcome the mechanical force limitations of direct-acting valves by using a small, high-efficiency pilot valve to hydraulically shift the massive main-stage spool.

This specific configuration stands out due to its comprehensive technical balancing. It features an external pilot supply and internal drain setup, allowing system engineers to supply a clean, stable independent pilot line to shift the main spool regardless of fluctuating primary system working pressures. The “H” option denotes optimized high-performance internal flow pathing, and the 82-JA design series incorporates advanced industrial-grade sealing and structural casting improvements that resist continuous high-duty fatigue cycles.

Core Technical Features & Advantages

• Advanced Multi-Stage Dynamics: The wet-armature pilot valve moves within a pressure-sealed tube filled with hydraulic oil, naturally dampening shifting shock, lowering airborne noise, and entirely removing wear-prone pushpin seals.

• Laminar Main Core Engineering: The large main-stage cast housing is structurally optimized to minimize internal fluid friction, drastically dropping pressure loss ($\Delta p$) at high flow volumes.

• High-Backpressure Reliability: Main-stage elements are built to absorb substantial return surges on the tank port (Port T) without risking uncommanded spool drift, stalling, or lockup.

• Heavy-Duty Electrical Junction Box (“P7”): Features an advanced central terminal junction box providing exceptional protection for internal wiring against surrounding factory hazards like oil mist, dust, and moisture.

• Hardened Spool Metallurgy: The precision-ground main spool features advanced wear-resistant coatings, ensuring minimal internal cross-port thermal bypass slip across millions of operational cycles.

Primary Applications

The Tokimec DG5V-7 heavy series is a vital automated control component heavily relied upon across high-stakes industrial production lines:

• Heavy-duty metal stamping, deep-drawing, and automated hydraulic pressing loops

• Large-scale plastic processing machinery, die-casting machinery, and high-output injection molding systems

• Scrap metal balers, industrial shearing equipment, and structural recycling compactors

• High-output industrial Hydraulic Power Units (HPUs) and automated primary manifold blocks

• Large infrastructure projects, marine deck winch drives, and automated bulk material handling systems
