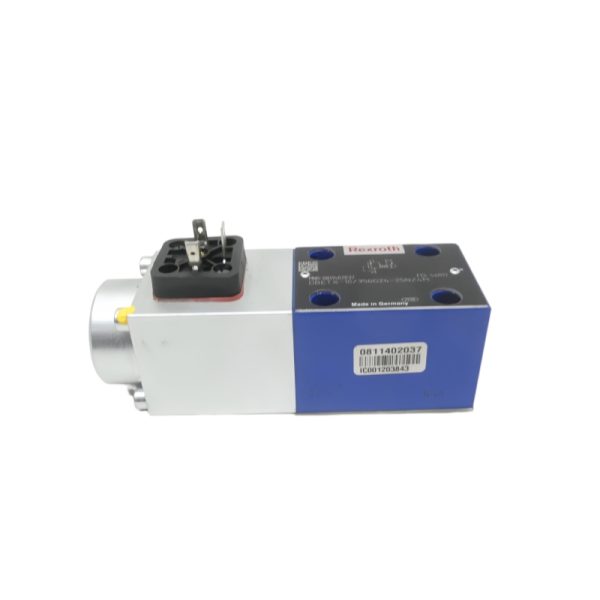

Rexroth 0811402037 Proportional Relief Valve

The Rexroth 0811402037 (DBETE Series) is an industrial-grade, direct-operated proportional pressure relief valve designed for the precise limitation and regulation of pressure within hydraulic systems. By utilizing an advanced proportional solenoid, this valve modulates system pressure dynamically in direct correlation to the electrical input current, replacing the need for multiple manual relief valves or complex multi-stage circuits.

The valve features a seat design (poppet type) that ensures tight, reliable sealing with minimal internal leakage when closed. The DBETE-3X series is subplate-mounted onto a standard Size 6 interface, making it a universal choice for plant modernizations, specialized testing rigs, and premium machinery rebuilds that require automated, remote-controlled pressure profiling.

Core Technical Features & Advantages

• Linear Pressure Adjustments: The proportional solenoid design offers an exceptionally flat, predictable hysteresis loop, ensuring highly repeatable control accuracy across the entire pressure spectrum.

• Rapid Dynamic Response: Because it is a direct-operated valve, the response time to electrical input changes or system spikes is immediate, protecting downstream components from destructive pressure transients.

• Subplate Cavity Standard: Conforms to ISO 4401-03, Cetop 3, and NFPA D03 international mounting standards for broad compatibility across Western and Asian industrial machinery.

• Robust Proportional Solenoid: Features a heavy-duty, wet-armature DC coil configuration. The fluid-filled armature chamber dampens mechanical vibration, reduces wear, and optimizes heat dissipation.

• Integrated Safety Limitations: Factory calibrated to prevent system over-pressurization even if electrical signal limits are breached.

Primary Applications

The 0811402037 proportional relief valve is widely implemented across precision B2B manufacturing automation and heavy processing environments:

• Hydraulic test benches and calibration systems requiring dynamic load simulation.

• Clamping and injection pressure circuits in plastic injection molding machines.

• Feed-rate and tooling pressure control systems in CNC machine tools.

• Proportional tensioning and braking systems in metal forming or winding machinery.

• Industrial Hydraulic Power Units (HPUs) utilizing electronic PLC control architectures.

Technical Specifications Table
