Name: Sunfab SCP Fixed Displacement Piston Pump | SCP 012-130 | DIN 5462 ISO Pump
SKU: Sunfab SCP ISO Piston Pumop SCP 012-130

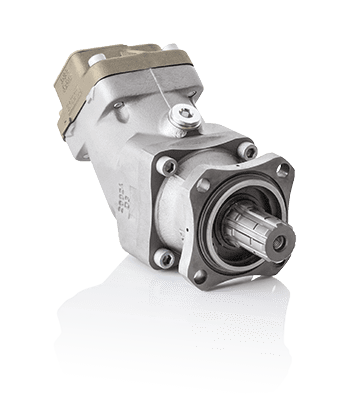

Sunfab SCP ISO Piston Pumop SCP 012-130

SKU: Sunfab SCP ISO Piston Pumop SCP 012-130

The Sunfab SCP Series is a range of high-performance fixed displacement axial piston pumps designed for demanding mobile hydraulic applications. Built on the bent-axis principle with a spherical piston design, the SCP pumps (covering sizes from 12cc to 130cc) offer high volumetric efficiency and can withstand working pressures up to 400 bar. They feature a standard ISO 7653-D mounting interface, making them compatible with direct mounting on truck PTOs (Power Take-Offs).

Key Features:

Series: SCP (Sunfab Compact Pump)
Range: 012 – 130 cm³/rev
Max. Pressure: 400 bar (5800 psi)
Standard: DIN 5462 / ISO 7653
Design: Bent-Axis.

Product Overview The Sunfab SCP ISO Piston Pump is engineered for speed and durability. Its lightweight yet rugged housing (aluminum alloy for smaller sizes, nodular graphite iron for larger sizes) ensures a high power-to-weight ratio. The precise bent-axis geometry allows for smooth operation at high rotational speeds, making it the preferred choice for load-sensing systems and continuous duty cycles on commercial vehicles.

Why Choose Sunfab SCP?

High Rotary Speed: The robust design allows operation at higher speeds without cavitation, improving system productivity.
400 Bar Capability: Capable of handling peak pressures up to 400 bar, suitable for heavy lifting applications.
Durability: Heavy-duty roller bearings and hardened steel gears ensure a long service life.
Corrosion Resistance: The housing is treated for corrosion protection, making it ideal for harsh outdoor environments like forestry and construction.

Common Applications:

Truck Hydraulics: Tippers, Hook Loaders, Skip Loaders.
Cranes: Truck-mounted Knuckle Boom Cranes.
Forestry: Timber Cranes and Harvesters.
Waste Management: Refuse Trucks.

Specification	Value / Description
Product Type	Fixed Displacement Axial Piston Pump (Bent-Axis)
Series	SCP (ISO / DIN Standard)
Displacement Range ( $V_g$ )	12, 17, 25, 34, 40, 47, 56, 64, 84, 108, 130 cm³/rev
Max. Continuous Pressure	350 – 400 bar (depending on size)
Max. Peak Pressure	400 bar (5800 psi)
Max. Speed ( $n$ )	1600 – 3000 rpm (Size dependent)
Mounting Standard	ISO 7653-D (DIN 5462 4-Bolt)
Shaft Type	Splined Shaft DIN 5462 (8x32x36)
Rotation	Left (L) or Right (R) – Must be specified
Common Part Numbers	Model Code: SCP-[Disp]-[Rotation]-[Seal]-[Shaft] SCP-012R-N-DL4-L35-S0S-000 SCP-025R-N-DL4-L35-S0S-000 SCP-047L-N-DL4-L35-S0S-000 SCP-056R-N-DL4-L35-S0S-000 SCP-064R-N-DL4-L35-S0S-000 SCP-084L-N-DL4-L35-S0S-000 (Popular 84cc) SCP-108R-N-DL4-L35-S0S-000 (Popular 108cc) SCP-130R-N-DL4-L35-S0S-000 (Popular 130cc)
