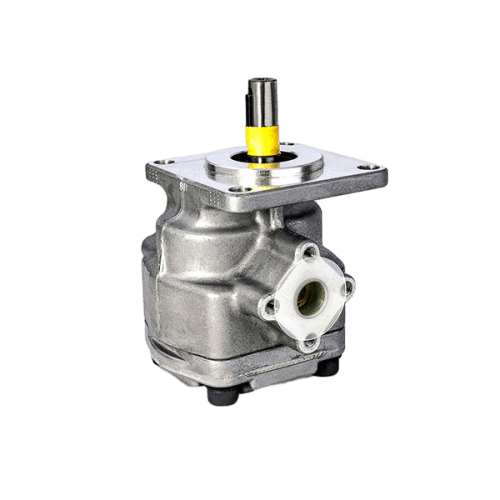

Product Overview The Shimadzu KP35 Gear Pump is engineered to deliver consistent hydraulic power in demanding mobile applications. Featuring a high-strength aluminum alloy body and special cast iron flanges, it ensures excellent thermal stability and wear resistance. The pump utilizes Shimadzu’s advanced gear tooth profile to minimize pulsation and noise while maximizing volumetric efficiency.
Why Choose the KP35 Series?
-
High Efficiency: The pressure-balanced bushing design automatically compensates for side clearance, maintaining high efficiency even at high temperatures.
-
Compact & Lightweight: The aluminum extrusion housing reduces the overall weight of the hydraulic unit without sacrificing strength.
-
Industry Compatibility: Designed to be a direct replacement for OEM pumps found in major forklift brands (Toyota, TCM, Komatsu, Mitsubishi, Nissan).
-
Durability: Hardened steel gears and heavy-duty bearings ensure a long service life under continuous load.
Common Applications:
-
Forklifts: Main hydraulic pump for lifting and steering (2-3.5 Ton capacity trucks).
-
Construction Machinery: Mini-excavators and loaders.
-
Special Purpose Vehicles: Sanitation trucks and aerial work platforms.
| Specification | Value / Description |
| Product Type | External Gear Pump |
| Series | KP / SGP1 Series (Size 36/35) |
| Displacement ($V_g$) | 36.0 cm³/rev (Standard for KP35) |
| Nominal Pressure | 206 bar (210 kgf/cm²) |
| Max. Speed ($n$) | 600 – 3000 rpm |
| Housing Material | Aluminum Alloy Body / Cast Iron Cover |
| Port Connections | Side Ports (Flange type or Threaded) |
| Shaft Type | SAE Spline (10T, 13T) or Keyed Shaft |
| Rotation | Clockwise (R) or Counter-Clockwise (L) |
| Fluid Temperature | -20°C to +80°C |
| Compatible OEMs | Toyota, Mitsubishi, TCM, Komatsu, Nissan |
| Common Part Numbers |
KP35B (General Industry Code) SGP1-36-D (Shimadzu Standard Right) SGP1-36-S (Shimadzu Standard Left) SGP1A-36-D (Variant with different flange) KP35-L / KP35-R Toyota 67110-23360-71 (Cross Reference) Kayaba KRP4-33 (Cross Reference) |
