Name: Sauer Danfoss SNP1NN Gear Pump | Group 1 | High Performance Hydraulic Pump
SKU: Sauer Danfoss SNP1NN Series Gear Pump

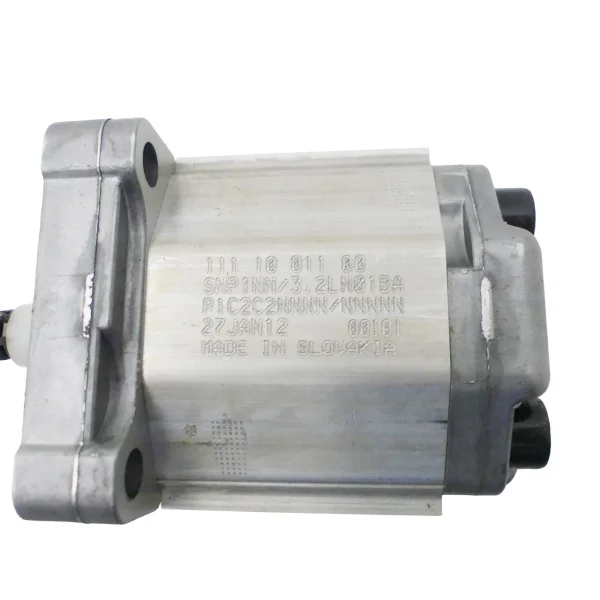

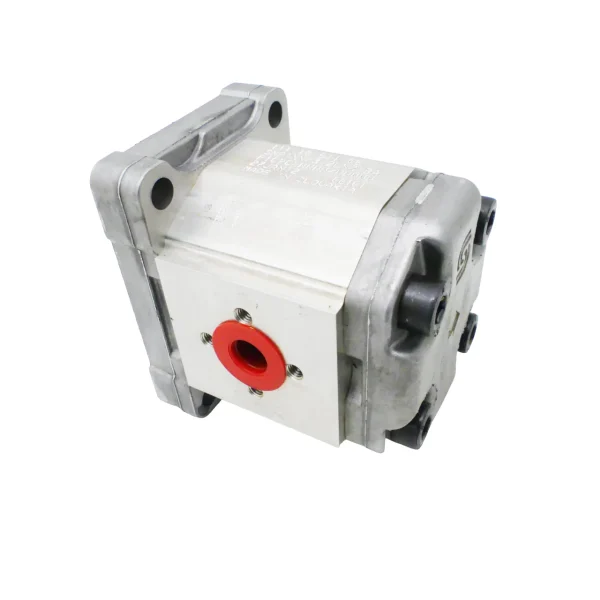

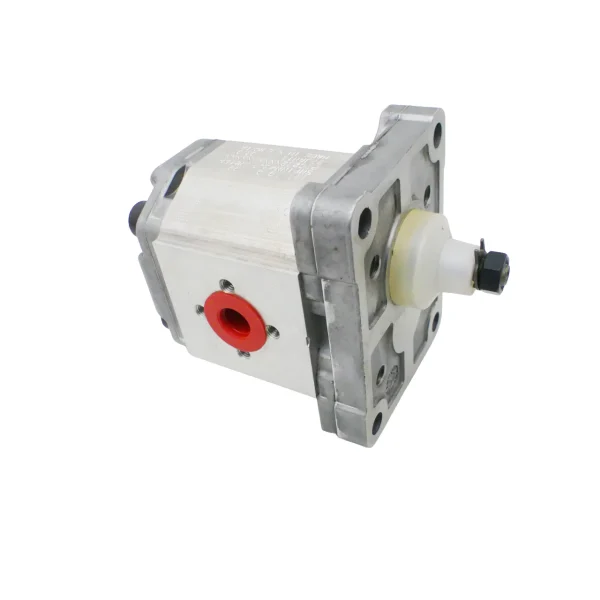

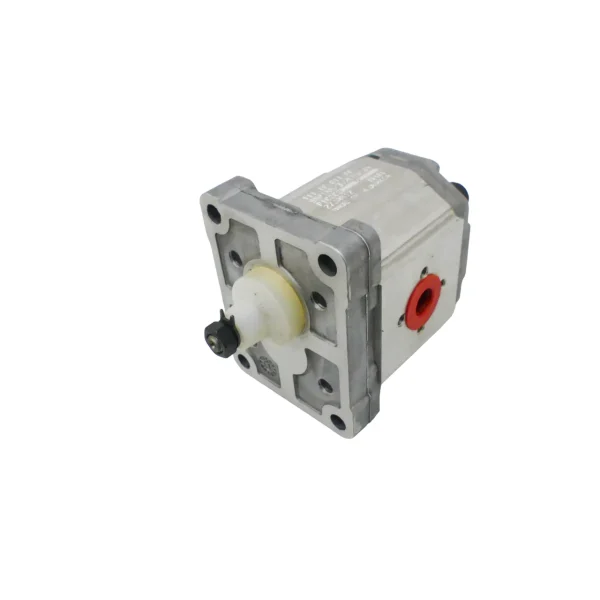

Sauer Danfoss SNP1NN Series Gear Pump

SKU: Sauer Danfoss SNP1NN Series Gear Pump

The Sauer Danfoss SNP1NN (now Danfoss Power Solutions) is a high-performance external gear pump belonging to the Group 1 family. As the direct successor to the legacy SNP1 series, the SNP1NN offers enhanced durability and efficiency in a lightweight aluminum body. It is designed for small mobile and industrial hydraulic systems requiring reliable pressure up to 250 bar.

Key Features:

Series: SNP1NN (Group 1)
Displacement: 1.2 to 12.0 cm³/rev
Max. Pressure: Up to 250 bar (Continuous)
Design: Pressure-balanced, aluminum housing.

Product Overview The Sauer Danfoss SNP1NN Series represents the latest generation of Group 1 gear pumps. Engineered with a high-strength extruded aluminum body and pressure-balanced bushing blocks, the SNP1NN ensures consistent volumetric efficiency and minimal internal leakage. It is widely used in applications where space is limited but high power density is required. This series is fully interchangeable with the older Sauer Danfoss SNP1 models.

Why Choose Danfoss SNP1NN?

Proven Reliability: Built on decades of Danfoss engineering, ensuring long service life under varying operating conditions.
Low Noise: The gear tooth profile is optimized to reduce pressure ripple and noise generation.
High Efficiency: Floating bushings provide axial compensation, maintaining high efficiency throughout the pump’s life.
Versatility: Available with a wide range of standard flanges (European 4-bolt, SAE AA) and shaft options (Tapered, Splined, Parallel).

Common Applications:

Turf and Garden maintenance equipment
Mini-excavators and Skid Steers
Aerial Lifts and Platforms
Hydraulic Power Packs
Forklifts

Specification	Value / Description
Product Type	External Gear Pump (Group 1)
Series	SNP1NN (Replaces SNP1)
Displacement Range ( $V_g$ )	1.2, 1.7, 2.2, 2.6, 3.2, 3.8, 4.3, 6.0, 7.8, 9.8, 12.0 cm³/rev
Continuous Pressure	250 bar (for sizes up to 6.0cc) / 220-180 bar (larger sizes)
Peak Pressure	Up to 270 bar
Max. Speed ( $n$ )	4000 rpm (Small sizes) to 2500 rpm (Large sizes)
Fluid Temperature	-20°C to +80°C
Mounting Standard	European 4-Bolt (25.4mm pilot), SAE AA 2-Bolt
Typical Model Code	SNP1NN / [Disp] / [Rot] / [Shaft] / [Flange] (Rot: R = Right, L = Left)
Common Part Numbers	SNP1NN-1,2R (1.2 cc/rev) SNP1NN-2,6R (2.6 cc/rev) SNP1NN-3,2R (3.2 cc/rev) SNP1NN-4,3R (4.3 cc/rev) SNP1NN-6,0R (6.0 cc/rev) SNP1NN-7,8R (7.8 cc/rev) SNP1NN-9,8R (9.8 cc/rev) SNP1NN-12,0R (12.0 cc/rev) Note: “L” suffix available for Counter-Clockwise rotation.
