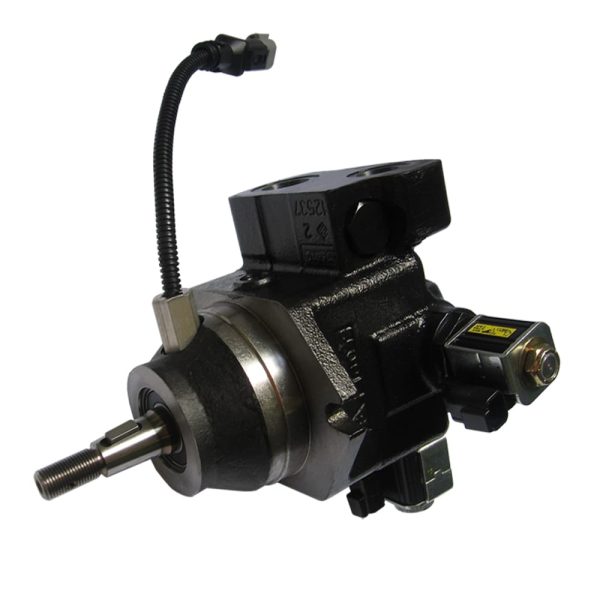

Parker M5ASF Fixed Displacement Vane Motor

The Parker Denison M5ASF is a compact, fixed displacement vane motor designed for heavy-duty industrial and mobile applications. Part of the renowned M5A Series, it utilizes Parker’s patented dual-lip vane technology to deliver exceptional starting torque efficiency and volumetric efficiency. The M5ASF is specifically engineered to provide smooth low-speed operation and high reliability at pressures up to 230 bar.

Key Features:

Series: M5ASF (M5A Frame)
Displacement: 6.3 to 25.0 cm³/rev
Max. Pressure: 210 – 230 bar
Mounting: SAE A (2-Bolt).

Product Overview The Parker Denison M5ASF Vane Motor is a bi-directional hydraulic motor that converts hydraulic energy into rotary mechanical power. Unlike standard motors, the M5ASF features a hydraulically balanced design that eliminates radial bearing loads, ensuring a long bearing life even at high pressures. Its dual-lip vane design ensures positive contact with the cam ring, resulting in a very low torque ripple and consistent performance across a wide speed range.

Why Choose Parker M5ASF?

High Starting Efficiency: Delivers high torque immediately upon startup, making it ideal for winches and hoist drives under load.
Low Noise & Ripple: The multi-vane design minimizes flow pulsation, resulting in smooth rotation and quiet operation.
Compact Power: Provides high power density in a small SAE A frame size, perfect for space-constrained machinery.
Interchangeability: External mounting dimensions conform to SAE standards for easy replacement of existing motors.

Common Applications:

Fan Drives: Cooling systems in mobile equipment.
Winches: Marine and forestry winches.
Swing Drives: Mini-excavators and cranes.
Industrial: Conveyor belts, Mixers, and Agitators.

Specification	Value / Description
Product Type	Fixed Displacement Vane Motor
Series	M5A Series (Model M5ASF)
Displacement Range ( $V_g$ )	006: 6.3 cc/rev 008: 8.0 cc/rev 010: 10.0 cc/rev 012: 12.5 cc/rev 016: 16.0 cc/rev 018: 18.0 cc/rev 020: 20.0 cc/rev 025: 25.0 cc/rev
Max. Pressure	230 bar (3300 psi) Continuous (depends on size/fluid)
Max. Speed ( $n$ )	Up to 4000 rpm
Mounting Flange	SAE A 2-Bolt (J744c)
Shaft Options	Splined (SAE A 9T, 11T), Keyed (SAE A)
Port Connections	SAE Threaded or 4-Bolt Flange
Rotation	Bi-directional (Reversible)
Common Part Numbers	Model Code: M5ASF-[Disp]-[Shaft]-[Rot]-[Port]-[Design] M5ASF-006-1N01… (6.3cc, Keyed Shaft) M5ASF-010-1N02… (10.0cc, Keyed Shaft) M5ASF-012-1N02… (12.5cc, Keyed Shaft) M5ASF-018-4N02… (18.0cc, Splined Shaft) M5ASF-025-1N03… (25.0cc, Keyed Shaft) Key: Shaft 1: Keyed SAE A Shaft 4: Splined SAE A (9T) N: Bi-directional Rotation
