Name: Parker Denison T6 Vane Pump | High Pressure Series T6C T6D T6E | Hydraulic Pump
SKU: Parker Denison T6 Series

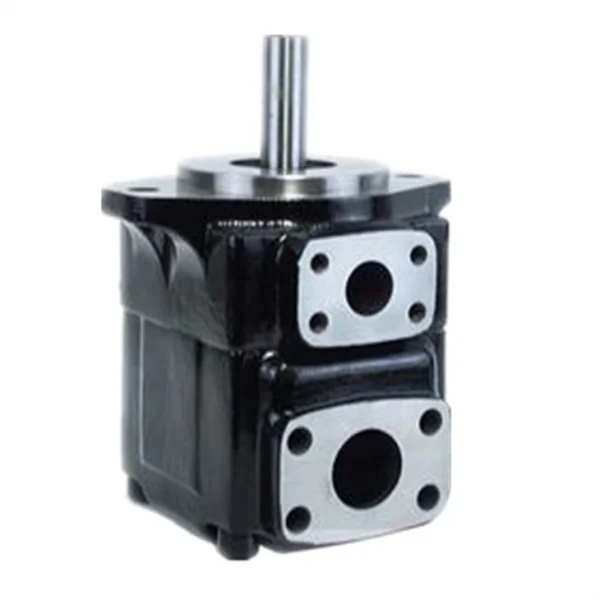

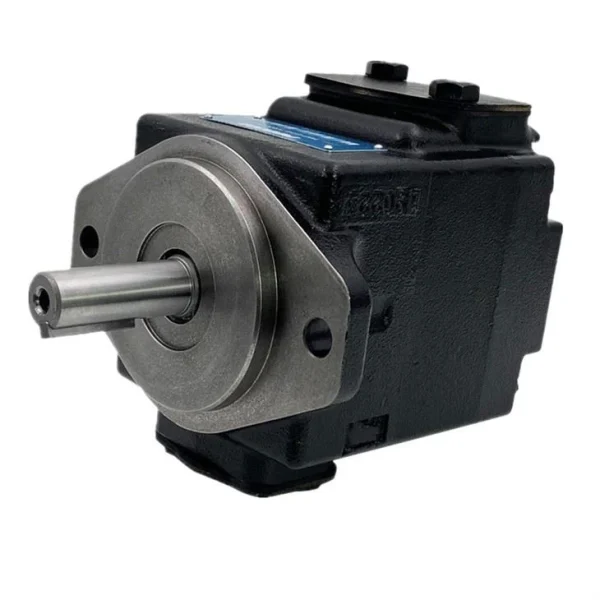

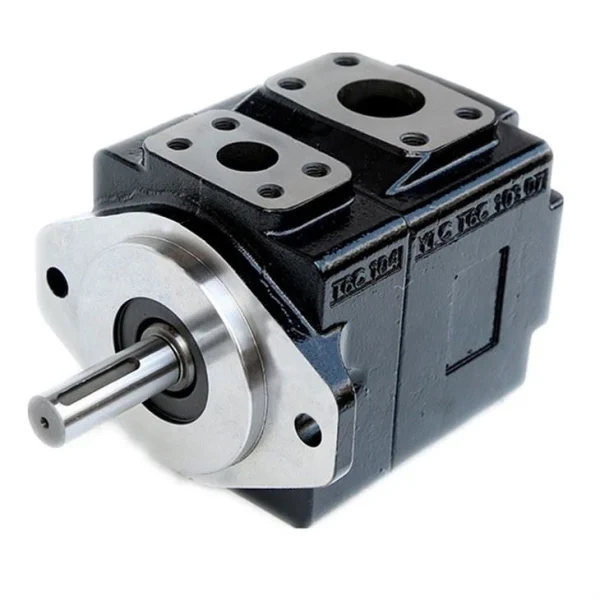

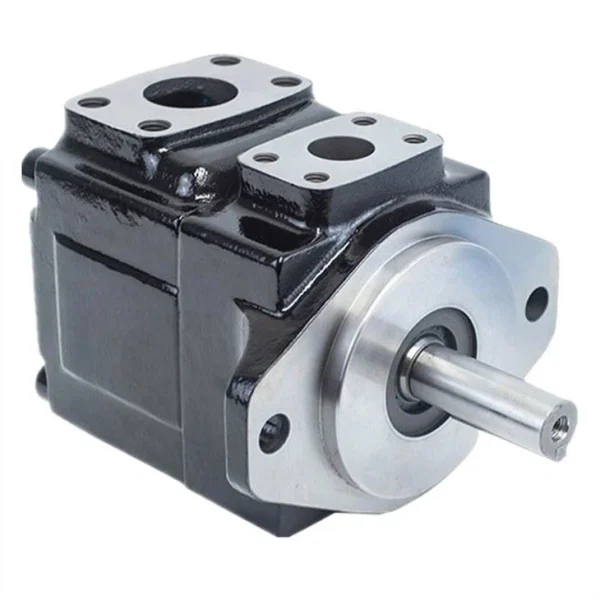

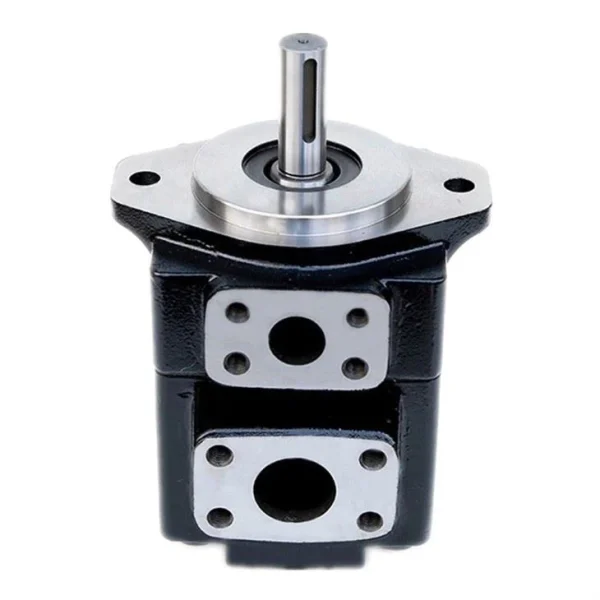

Parker Denison T6 Series Vane Pump

SKU: Parker Denison T6 Series

The Parker Denison T6 Series is a high-performance fixed displacement vane pump designed for high-pressure industrial and mobile applications. Utilizing Denison’s patented pin-vane (double-lip) technology, the T6 series minimizes noise and wear while delivering pressures up to 300 bar—significantly higher than standard vane pumps. Its modular design allows for easy maintenance with replaceable cartridge kits.

Key Features:

Series: T6 (Industrial/Mobile)
Configurations: Single, Double, Triple
Max. Pressure: Up to 280 – 300 bar
Technology: Balanced Design with Pin-Vane System.

Product Overview The Parker Denison T6 Vane Pump sets the industry standard for efficiency and durability. The pump features a hydraulically balanced design reducing bearing loads, combined with a unique pin-vane mechanism that ensures positive vane contact with the cam ring even at low speeds. This results in high volumetric efficiency (typically >94%) and the ability to handle a wide viscosity range.

Why Choose Parker Denison T6?

High Pressure Capability: Rated for continuous pressures up to 280-300 bar, making it suitable for demanding applications where other vane pumps fail.
Low Noise: The 12-vane system and optimized cam ring profile significantly reduce pressure ripple and operational noise (~66-70 dBA).
Cartridge Concept: The pumping mechanism consists of a replaceable cartridge kit. This allows for quick on-site repairs or displacement changes without removing the pump from the mount.
Versatility: Available in Single (T6C, T6D, T6E), Double (T6CC, T6DC, T6EC…), and Triple configurations to drive multiple circuits from a single shaft.

Common Applications:

Plastic Machinery: Injection Molding (Clamping/Injection).
Die Casting: High-pressure metal forming.
Mobile Equipment: Refuse trucks (Garbage compactors), Scrapers.
Presses: Hydraulic stamping and bending presses.

Specification	Value / Description
Product Type	High Pressure Vane Pump
Series	T6 (Standard), T67 (Mobile), T7 (High Pressure)
Frame Sizes	C (Small), D (Medium), E (Large)
Displacement Range	Size C: 10.8 – 100.0 ml/rev (Cam 003 to 031) Size D: 47.6 – 158.0 ml/rev (Cam 014 to 050) Size E: 132.3 – 268.7 ml/rev (Cam 042 to 085)
Max. Pressure	275 – 300 bar (Depends on fluid and size)
Speed Range ( $n$ )	600 – 2800 rpm
Cartridge Kit	Interchangeable (Cam Ring, Rotor, Vanes, Plates)
Mounting	SAE 2-Bolt (B, C) / SAE 4-Bolt (D, E)
Fluid Compatibility	Mineral Oils, Water Glycols, Phosphate Esters
Common Part Numbers	Model Code Structure: [Series]-[Cam]-[Shaft]-[Rot]-[Port]-[Seal] Single Pumps: T6C-025-1R00-C1 (Size C, 025 Cam) T6D-038-1R00-C1 (Size D, 038 Cam) T6E-050-1R00-C1 (Size E, 050 Cam) Double Pumps: T6CC-025-008-1R00… T6DC-038-017-1R00… T6ED-050-038-1R00… (Note: Cam size dictates displacement. E.g., 025 = 79.5 ml/rev in C series)
