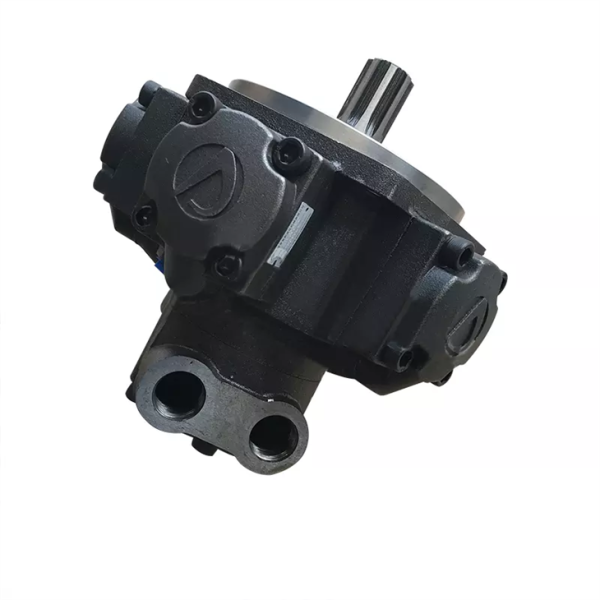

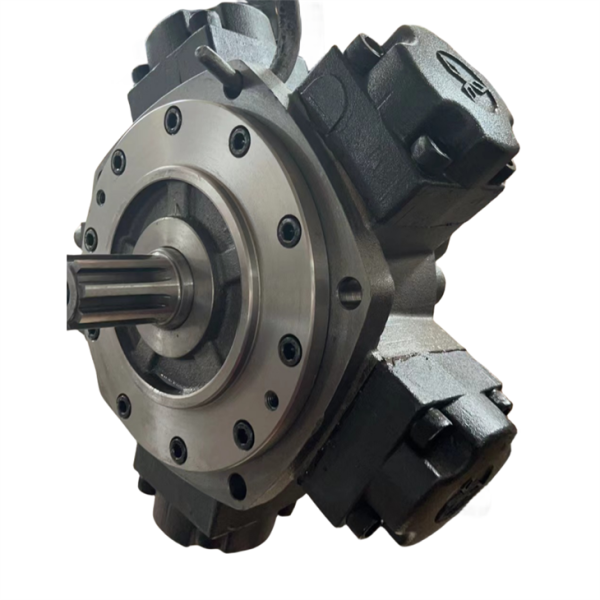

Mr1800h-f1n1n1s2nx Radial Piston Motor (NHM8/HMHDB Interchange)

The Mr1800h-f1n1n1s2nx is a highly specialized Low Speed High Torque (LSHT) radial piston hydraulic motor. Often referred to as a “five-star motor” due to its distinctive five-piston eccentric crankshaft architecture, this exact configuration is engineered for environments where sheer rotational force and low-speed stability are non-negotiable.

Whether you are upgrading a marine winch or replacing a failed drive on a plastic injection molding machine, the Mr1800h-f1n1n1s2nx provides the precise geometric displacement and porting required to get heavy industrial equipment back online immediately.

Design & Engineering Superiority

Standardizing on this exact alphanumeric configuration guarantees that your mechanical interfaces and hydraulic parameters align perfectly.

Eccentric Crankshaft Architecture: The five-piston internal layout drastically lowers the excitation and vibration frequency. This allows the Mr1800h-f1n1n1s2nx to revolve steadily even at incredibly low RPMs without the “cogging” or stuttering seen in lesser motors.
Hydrostatic Balancing: Advanced plate compensational oil distributors and hydrostatically balanced connecting rods minimize internal friction. This directly translates to higher mechanical efficiency and outstanding startup torque under heavy loads.
Premium Spherical Sealing: Specialized plasma-coated sealing rings between the pistons and cylinders guarantee near-zero internal leakage, maintaining high volumetric efficiency even when holding maximum back pressure.
Universal Interchangeability: This specific build is dimensionally and functionally mapped to serve as a 1:1 drop-in replacement for the widely used Intermot NHM8-1000 and the Staffa HMHDB100, consolidating your spare parts inventory.

Exact Technical Specifications

Engineering Parameter	Mr1800h-f1n1n1s2nx Specifications
Motor Classification	LSHT Radial Piston (Five-Star Design)
Primary Interchange	NHM8-1000 / HMHDB100
Displacement Category	Large Capacity (approx. 1000 cc/rev to 1800 cc/rev range depending on specific cam profile)
Maximum Operating Pressure	250 bar (Continuous) / 300 bar (Intermittent)
Starting Torque	Exceptionally high, suitable for direct-drive winches
Shaft Design	Standard heavy-duty splined or parallel keyed (per “s2” code)
Recommended Filtration	25 μm for normal industrial use

Frequently Asked Questions (FAQs)

Q1: Can the Mr1800h-f1n1n1s2nx directly replace my broken NHM8-1000? Yes. This specific motor configuration is engineered with the exact mounting flange, shaft dimensions, and port connections to serve as a seamless, bolt-on replacement for the Intermot NHM8-1000 and the NHM8-700 series, requiring no machine modifications.

Q2: What makes the “five-star” piston design better for low-speed operations? The five radially arranged pistons ensure continuous, overlapping power strokes against the eccentric crankshaft. This geometry eliminates dead spots in the rotation, providing incredibly smooth and stable torque delivery even when the motor is barely turning.

Q3: Is this motor capable of handling sudden shock loads? Absolutely. The robust roller bearings and hydrostatically balanced internal components are specifically designed to absorb severe mechanical shocks and sudden pressure spikes, making it ideal for rock drilling, scrap shredding, and heavy lifting.

Q4: Will this unit replace a Staffa HMHDB100 motor? Yes, the external dimensions and performance parameters of this motor are carefully matched to the HMB and HMHDB series (including the HMHDB100). It will match the heavy-duty power output and footprint of the original Staffa unit.

Q5: How does the plate compensational oil distributor improve performance? The patented distributor design actively compensates for wear and temperature fluctuations to maintain a tight seal within the motor. This prevents high-pressure hydraulic fluid from bypassing the pistons, ensuring your equipment maintains maximum lifting power as it ages.
