Name: Eaton Vickers V Series Vane Pump | 20V 25V 35V 45V | Industrial Hydraulic Pump
SKU: Eaton Vickers V Series

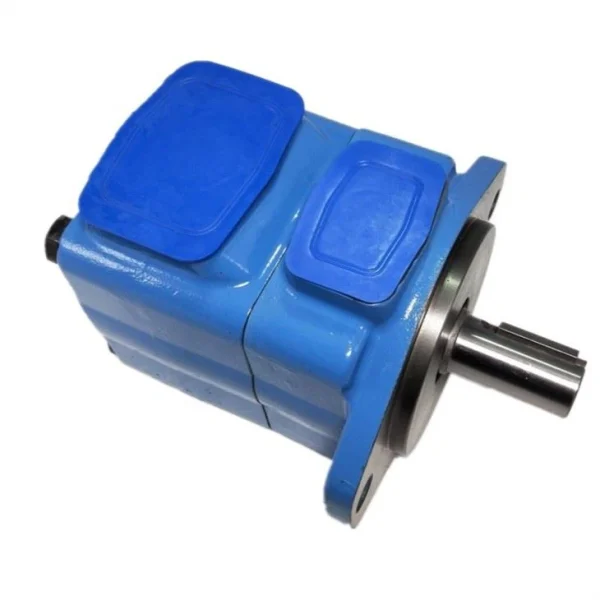

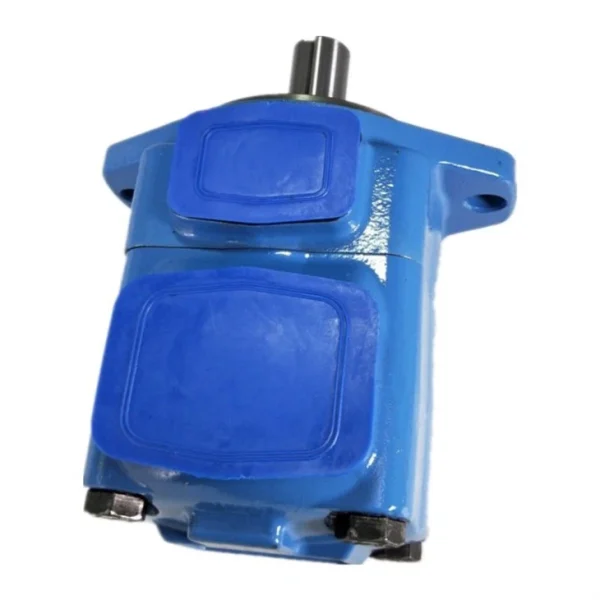

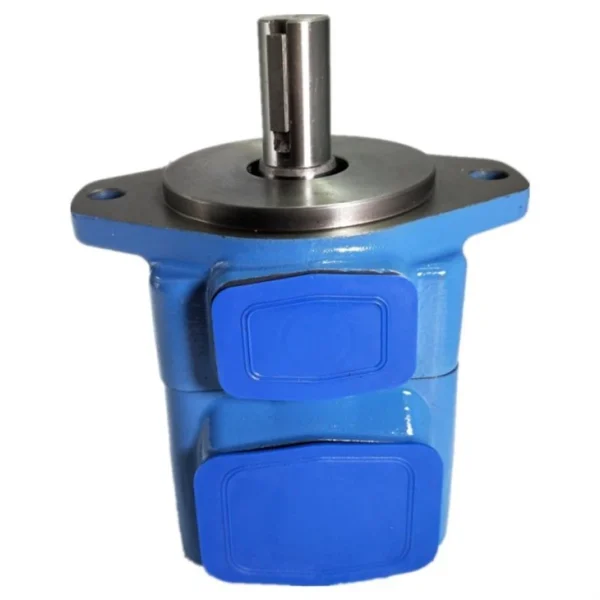

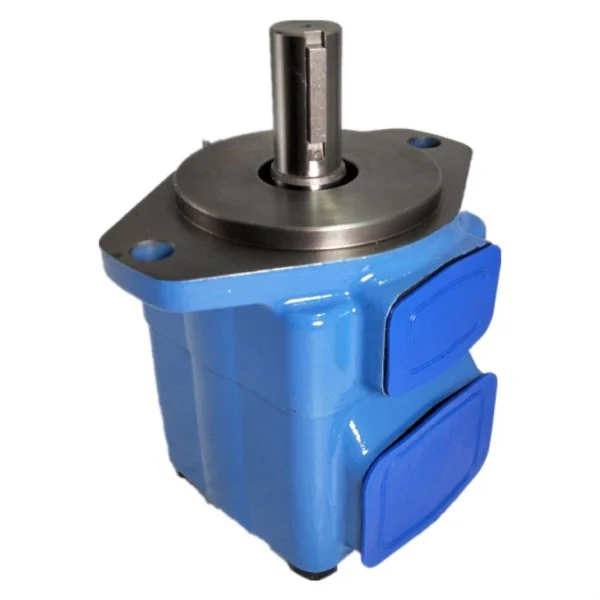

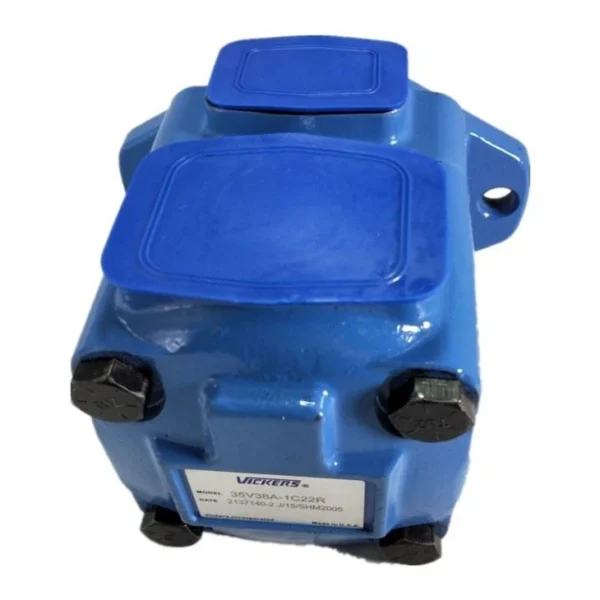

Eaton Vickers V Series Single Vane Pump

SKU: Eaton Vickers V Series

The Eaton Vickers V Series is the industry standard for fixed displacement vane pumps in industrial applications. Utilizing the renowned Intravane (intra-vane) technology, the V series offers reduced sound levels and extended service life. Its modular design allows the entire pumping element (cartridge kit) to be replaced in minutes without removing the pump from the drive, minimizing downtime for maintenance.

Key Features:

Series: 20V, 25V, 35V, 45V
Technology: 12-Vane Intravane System
Max. Pressure: Up to 175 bar (2500 psi)
Design: Hydraulically Balanced, Cartridge Type.

Product Overview The Vickers V Series Single Pump is designed for medium-to-high pressure industrial circuits. The pump features a “pump-in-a-pump” cartridge design. The intra-vane system reduces the load on the vane tips against the cam ring, which significantly reduces wear and noise. The hydraulically balanced rotor design eliminates radial bearing loads, ensuring long bearing life even at maximum pressure.

Why Choose Eaton Vickers V Series?

Serviceability: The replaceable cartridge kit contains all wearing parts (cam ring, rotor, vanes, side plates). It can be swapped out quickly to restore the pump to factory performance.
Low Noise: The 12-vane construction ensures a smooth flow with low amplitude pulsation, making it one of the quietest pumps on the market.
Reliability: Proven performance in millions of installations worldwide.
Versatility: The pump outlet port can be rotated to four different positions to accommodate various plumbing layouts.

Common Applications:

Plastic Machinery: Injection Molding Machines (very common).
Metal Forming: Die Casting Machines, Hydraulic Shears.
Material Handling: Balers and Compactors.
Machine Tools: CNC Hydraulic Power Units.

Specification	Value / Description
Product Type	Fixed Displacement Vane Pump (Intravane)
Series	Industrial: 20V, 25V, 35V, 45V Mobile: 25VQ, 35VQ, 45VQ (Higher pressure)
Displacement Range (US gpm @ 1200rpm)	20V / 25V: 5, 8, 10, 12, 14, 17, 19, 21 gpm 35V: 21, 25, 30, 35, 38 gpm 45V: 42, 47, 50, 57, 60, 67, 75 gpm
Max. Pressure	175 bar (2500 psi) for V Series 210 bar (3000 psi) for VQ Series
Max. Speed ( $n$ )	1000 – 1800 rpm (Standard Industrial)
Mounting	SAE 2-Bolt (SAE A, B, C)
Fluid Compatibility	Anti-wear hydraulic oil, Water glycols (with special seals)
Cartridge Kits	Available as separate spare parts
Common Part Numbers	Model Code: [Series]-[Ring Size]-[Shaft]-[Port]-[Outlet]-[Design] 20V-8-1A-1C-22R (Size 20V, 8 gpm ring) 25V-17-1A-22R (Size 25V, 17 gpm ring) 25V-21-1A-22R (Size 25V, 21 gpm ring) 35V-30-1A-22R (Size 35V, 30 gpm ring) 35V-35-1A-22R (Size 35V, 35 gpm ring) 45V-50-1A-22R (Size 45V, 50 gpm ring) 45V-60-1A-22R (Size 45V, 60 gpm ring) (Note: “V” = Industrial, “VQ” = Mobile/High Pressure)
