Name: Brevini OT100 External Gear Pump | Group 1 | High Efficiency Hydraulic Pump
SKU: Brevini OT100 Series Gear Pump

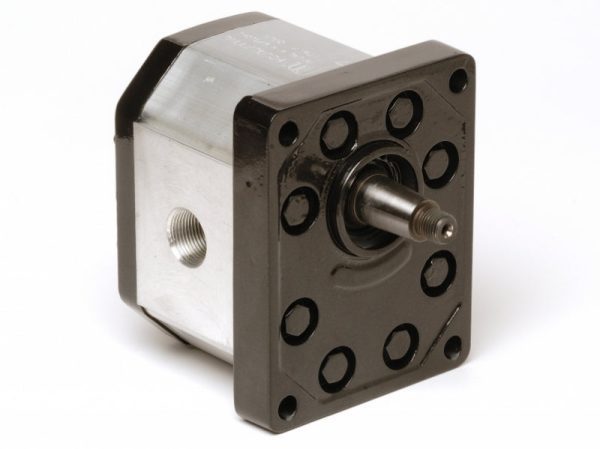

Brevini OT100 Series Gear Pump

SKU: Brevini OT100 Series Gear Pump

The Brevini OT100 (part of the Dana Brevini Fluid Power range) is a high-performance external gear pump in the Group 1 size category. Known for its superior volumetric efficiency and low noise levels, the OT100 series features a high-strength extruded aluminum body and pressure-balanced bushings. It is the ideal choice for compact hydraulic systems requiring reliable pressure up to 250 bar.

Key Features:

Series: OT100 (Group 1)
Displacement: 1.0 to 9.9 cm³/rev
Max. Pressure: Up to 250 bar (Peak 290 bar)
Application: Mini power packs, aerial platforms, lubrication.

Product Overview The Brevini OT100 Series external gear pumps are designed to offer high technical standards in a compact footprint. Manufactured by Dana (formerly Brevini Fluid Power), these pumps utilize advanced gear tooth profiles and hydrostatic balancing to minimize internal friction and leakage. The OT100 is versatile, supporting various flange and shaft configurations (SAE, European, and specific OEM standards) to fit a wide range of industrial and mobile machinery.

Why Choose Brevini OT100?

Quiet Operation: Optimized 12-tooth gear design significantly reduces pressure ripple and operational noise.
High Reliability: The aluminum housing provides excellent heat dissipation, while the integrated bushing blocks ensure long bearing life under heavy loads.
Efficiency: High volumetric efficiencies (average 95%) ensure minimal energy loss, crucial for battery-operated or small engine applications.
Flexibility: Available with clockwise, counter-clockwise, or reversible rotation options.

Common Applications:

Mini Hydraulic Power Packs (DC/AC)
Scissor Lifts and Aerial Work Platforms
Garage Equipment (Tire changers, Lifts)
Small Agricultural Machinery
Machine Tool Lubrication

Specification	Value / Description
Product Type	External Gear Pump
Series	OT100 (Group 1)
Displacement Range (Vg)	1.0, 1.2, 1.6, 2.0, 2.5, 3.2, 3.7, 4.2, 5.0, 6.3, 7.8, 9.9 cm³/rev
Continuous Pressure	Up to 250 bar (depending on displacement)
Peak Pressure	Up to 290 bar
Speed Range (n)	600 – 4000 rpm (Max 6000 rpm for smallest sizes)
Housing Material	Extruded Aluminum Body, Die-cast Aluminum Cover
Seals	NBR (Standard), Viton (Optional)
Mounting Flange	European 4-Bolt (Standard), SAE AA 2-Bolt
Fluid Temperature	-15°C to +80°C
Common Part Numbers	OT100P042 (4.2 cc/rev, Standard Euro)OT100P063 (6.3 cc/rev, Standard Euro)OT100P032 (3.2 cc/rev, Standard Euro)OT100-G1.0 (1.0 cc/rev)OT100-G2.0 (2.0 cc/rev)OT100-G3.2 (3.2 cc/rev)OT100-G4.2 (4.2 cc/rev)OT100-G6.3 (6.3 cc/rev)Note: “D” or “S” suffix indicates rotation (D=Right/CW, S=Left/CCW).
