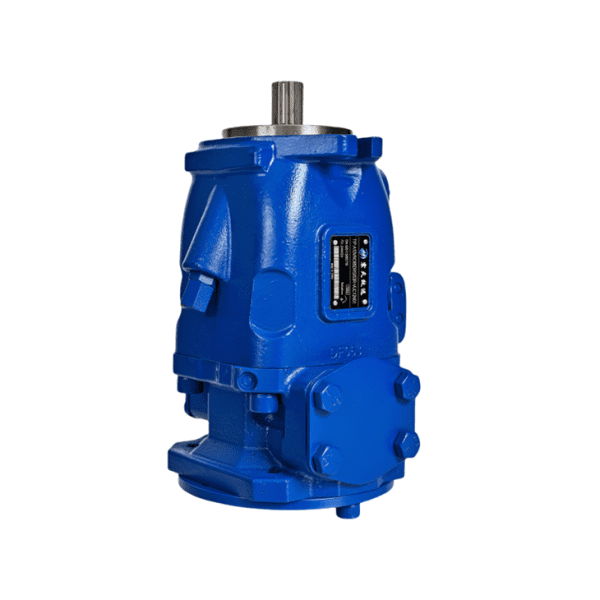

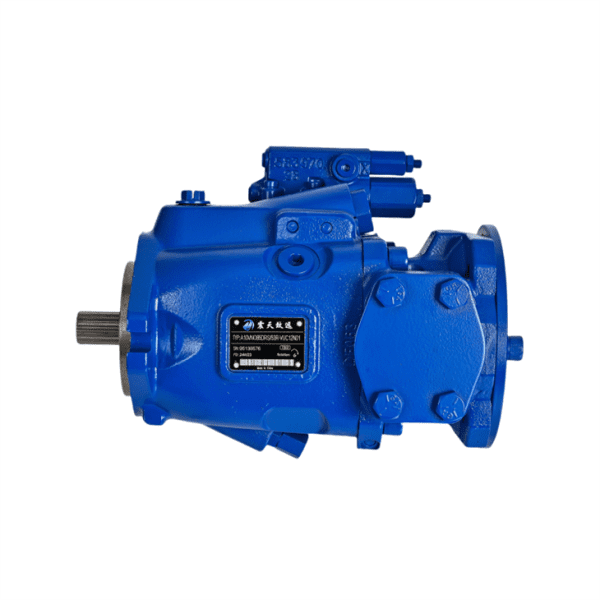

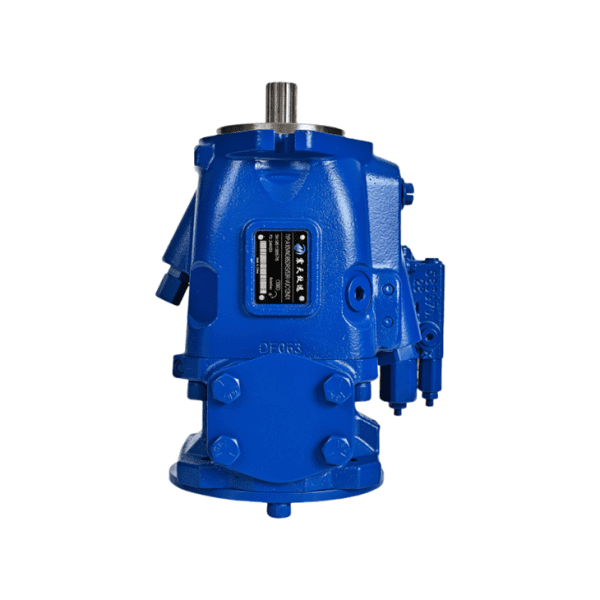

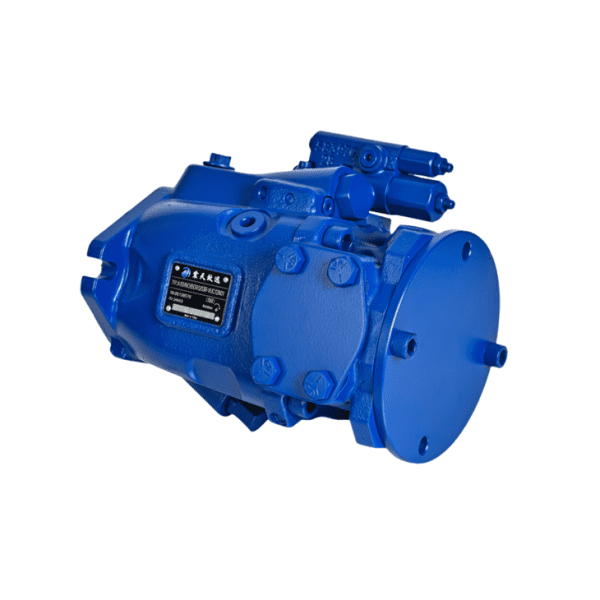

Product Overview Traditional industrial pumps are often too long or bulky to be installed directly onto the PTO of a truck transmission due to interference with the drive shaft or truck frame. The Rexroth AA10VNO28 solves this problem with its optimized, short-profile swashplate design. It delivers variable flow proportional to the engine speed and displacement setting, converting mechanical PTO power into flexible hydraulic energy.
Why Choose the Rexroth AA10VNO Series?
-
Ultra-Compact Footprint: Specifically designed to avoid collision with chassis components. The shortened housing allows for direct flanging onto standard commercial vehicle PTOs.
-
Energy Savings (Variable Flow): Unlike traditional fixed gear pumps that constantly pump oil (creating heat and wasting truck fuel), the AA10VNO with DR control destrokes to zero flow once the maximum system pressure is reached. It only pumps exactly what the implement needs.
-
High Speed Capability: Designed to operate safely at the high rotational speeds typical of truck PTOs without cavitation.
-
Viton Seals (V): Equipped with FKM (Viton) seals, allowing it to withstand higher operating temperatures and providing compatibility with a broader range of hydraulic fluids.
Common Applications:
-
Commercial Trucks: Refuse trucks (garbage compactors), hook loaders, and skip loaders.
-
Municipal Vehicles: Street sweepers, snowplows, and salt spreaders.
-
Truck-Mounted Equipment: Truck-mounted cranes (Knuckle boom cranes), aerial work platforms (cherry pickers).
| Specification | Value / Description |
| Material Number | R902455949 (Exact Rexroth OEM Part Number) |
| Product Type | Variable Displacement Axial Piston Pump |
| Application | Commercial Vehicles / Open Circuit |
| Displacement ($V_{g max}$) | 28 cm³/rev |
| Nominal Pressure | 210 bar (3050 psi) – Standard for size 28 mobile applications |
| Peak Pressure | 250 bar (3600 psi) |
| Sealing Material | FKM (Viton) – For high temp / synthetic fluids |
| Model Breakdown | AA10VNO 28 DR / 52 R – V R C 40 N00 – S2241 |
| – AA10VNO | SAE version of variable pump for commercial vehicles |
| – 28 | Displacement: 28 cc/rev |
| – DR | Control Type: Pressure Control |
| – 52 R | Series 52, Direction of Rotation: Right / Clockwise |
| – V | Seals: Viton (FKM) |
| – R C | Shaft/Flange: Splined shaft (SAE standard), 2-hole mounting flange |
| – 40 N00 | Port connections and standard non-through-drive configuration |
| – S2241 | Special specific application / OEM custom code |
