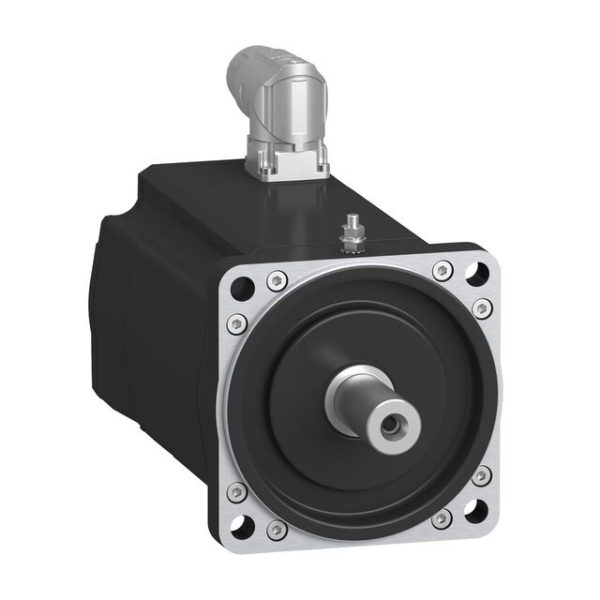

Schneider SH31001 AC Servo Motor

The Schneider Electric SH31001 is an industrial-grade, high-inertia AC synchronous servo motor designed to deliver exceptional dynamic control and absolute positioning accuracy in complex automated machinery. As a cornerstone of the premium Lexium SH3 series, this 100mm flange-size brushless motor is engineered to bridge the gap between high torque requirements and precise physical envelope constraints, making it a preferred choice for high-tier machine builders (OEMs) and factory MRO upgrades.

This model stands out due to its advanced low-inertia rotary design and optimized thermal core dissipation pathways. By utilizing highly dense, rare-earth permanent magnets, the SH31001 generates a highly concentrated magnetic field, resulting in instantaneous acceleration curves and superior peak torque limits. Outfitted with heavy-duty rotatable angular connectors for quick industrial cabling, it guarantees long-term operational reliability over heavy continuous-duty multi-axis synchronization cycles.

Core Technical Features & Advantages

• Dynamic Acceleration Curve: Low-mass rotor construction allows for extremely crisp start-stop profiles, directly boosting total machine throughput and cycle index rates.

• SinCos Hiperface Encoder Interface: Built-in electronic nameplate automatically transmits comprehensive motor parameters directly to the drive, minimizing configuration and commissioning times.

• Advanced Winding Thermal Profile: Vacuum-encapsulated stator windings ensure zero hotspots, minimizing copper losses and preventing thermal degradation under prolonged heavy-duty industrial holding torques.

• Smooth Rotatable Right-Angle Connectors: Speedtec-compatible dual power and signal connectors can be rotated 270 degrees to simplify wiring schematics inside narrow machine frames.

• Maintenance-Free Longevity: Brushless construction coupled with oversized, life-lubricated deep-groove ball bearings eliminates routine mechanical wear, driving down lifetime total cost of ownership (TCO).

Primary Applications

The Schneider Lexium SH31001 servo motor is globally trusted and implemented across a vast spectrum of high-speed automation and precise motion control loops:

• Multi-axis CNC machine tools, automated machining fixtures, and robotic arm articulation

• High-speed industrial packaging lines, pick-and-place systems, and palletizing equipment

• Precision textile machinery, material handling conveyor arrays, and automated tracking systems

• Material processing, metal forming lines, printing presses, and label application networks

• Feed axes control on plastic processing, sheet-metal shearing, and assembly machinery

Technical Specifications Table
