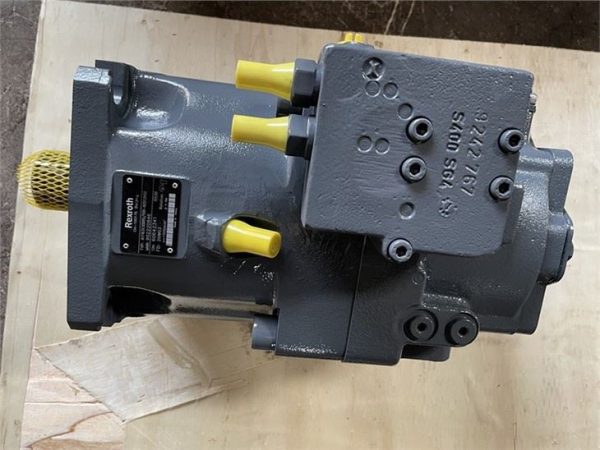

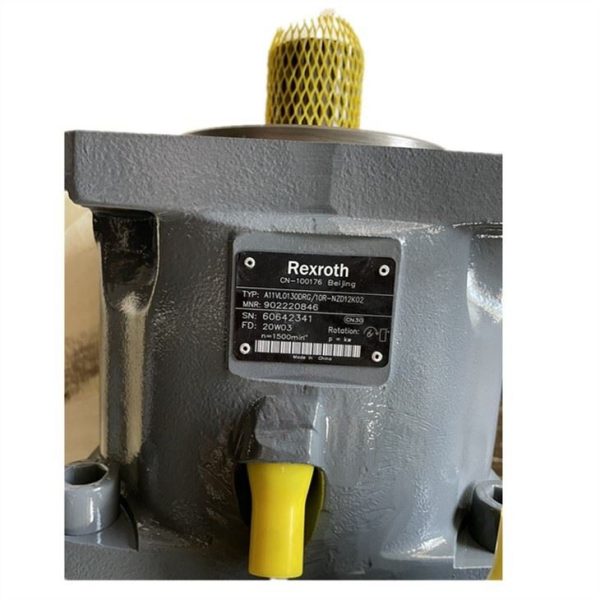

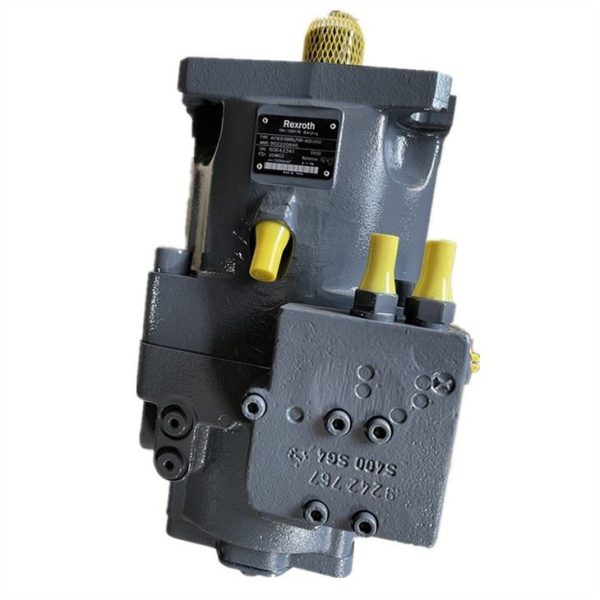

Product Overview The Rexroth A11VLO130 Variable Pump is the powerhouse behind some of the most demanding mobile machinery in the world. Its flow is proportional to the drive speed and displacement, capable of seamless adjustment by modulating the swashplate angle. The unique internal impeller acts as a centrifugal centrifugal boost pump, effectively eliminating cavitation risks even when driven directly by high-revving diesel engines.
Why Choose the Rexroth A11VLO Series?
-
High-Speed Capability: The built-in impeller significantly improves suction characteristics, allowing the pump to operate at speeds far exceeding standard open-circuit pumps.
-
Remote Pressure Control (DRG): The DRG control module allows the maximum system pressure to be adjusted remotely via a pilot valve, offering flexible and safe machine operation.
-
Power Dense & Robust: Rated for 350 bar continuous pressure, it features heavy-duty bearings and a reinforced swashplate to withstand severe shock loads.
-
Through-Drive Design: Capable of mounting additional pumps (like gear pumps or other piston pumps) directly to the rear flange, forming a compact multi-pump system (as indicated by the “K02” code).
Comprehensive Spare Parts Supply: Hydraulic downtime is costly. Alongside complete A11VLO130 units, we provide a full range of high-quality replacement parts for overhaul and repair, including:
-
Cylinder Barrels & Valve Plates
-
Piston Shoes & Retainer Plates
-
Swashplates & Bearings
-
DR / DRG / LR Control Valves
-
Complete Seal Kits & O-rings
Common Applications:
-
Construction: Concrete pump trucks, large excavators, crawler cranes.
-
Material Handling: Heavy-duty reach stackers.
-
Forestry & Mining: Drill rigs, large wheel loaders.
| Specification | Value / Description |
| Product Type | Variable Displacement Axial Piston Pump |
| Circuit Type | Open Circuit |
| Series | A11VLO (Series 10) |
| Displacement ($V_{g max}$) | 130 cm³/rev |
| Nominal Pressure | 350 bar (5100 psi) |
| Peak Pressure | 400 bar (5800 psi) |
| Max. Speed (with Impeller) | ~3150 rpm (Significantly higher than standard A11VO) |
| Model Breakdown | A11VLO 130 DRG / 10 R – N Z D 12 K02 |
| – A11VLO | Swashplate variable pump, open circuit, with impeller |
| – 130 | Size: 130 cc/rev |
| – DRG | Control: Pressure control, remotely operated |
| – 10 R | Series 10, Right (Clockwise) rotation |
| – N Z D | NBR seals, Splined shaft (DIN 5480), SAE 4-hole mounting flange |
| – 12 | SAE flange ports (Pressure and Suction) |
| – K02 | Through-drive for attaching another pump (e.g., SAE B flange) |
